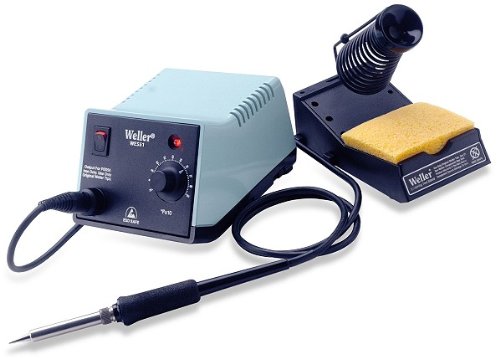

Weller WES51 Analog Soldering Station, Power Unit, Soldering Pencil, Stand and Sponge

Today's tips: "Best is reviewing several wood working tools first, prior to purchasing ..."

---

NOTE: All online transactions are processed at Amazon.com's secure server,
using the latest technology on internet's secure transactions.

Publisher: Weller

Brand: Weller
List Price: $124.95
Our Price: Too low to display
You Save: $ ( % )
(prices subject to change)
Availability: Usually ships in 5 to 7 weeks

Average Customer Ratings:

The new, innovative WES51 is an ideal station for continuous production soldering, and its economical price makes it a good station for occasional users. ESD Static sensitive grounded slim profile iron accepts the new miniature tips for surface mount soldering. The 24V soldering iron includes a new heater and sensor combination that allows for relatively quick heat-up and recovery. Temperature is adjustable from 350(0)F - 850(0)F. Temperature stability +/- 10 deg. Includes 50 watt Slim Profile Iron. UL approved. Temperature lockout and tip temperature offset ability come standard, as does an automatic shut off feature that extends tip, iron, and station life. 4 foot long three wire grounded power cord. Net weight: 4-1/2 lbs. Power consumption: 60 Watts. Includes integral sponge and holder. Replacement sponge available.


DESCRIPTION:

Binding: Tools & Hardware
Brand: Weller
EAN: 0037103161208
Feature: Designed for continuous production, rework, and repair of through hole, SMT boards, most ground planes, and multi-layer boards
Is Autographed: 0
Is Memorabilia: 0
Label: Weller
Manufacturer: Weller
Model: WES51
Publisher: Weller
Special Features: Tip temperature offset capability
Studio: Weller


FEATURES:

• Designed for continuous production, rework, and repair of through hole, SMT boards, most ground planes, and multi-layer boards
• Wireless temperature lockout prevents operator from raising temperature to levels higher than specified for the board or component
• Station automatically powers down after 99 minutes of inactivity to prolong tip life and save power
• Pencil is fitted with non-burnable silicone rubber cord for added safety, and pencil uses ET series tips
• Slim, comfortable pencil reduces operator fatigue



ACCESSORIES:

• Weller Soldering Tip, .024", Conical, ET Series
• Weller Soldering Tip, 1/64", Single Flat, ET Series
• Weller Soldering Tip, Knife, ETKN, 0.180"
• Weller Soldering Tip, 1/16", Single Flat, ET Series
• Weller Soldering Tip, .024", Single Flat, ET Series


SIMILAR ITEMS:

• LONG CONCICAL TIP .031
• Electronic Solder 60/40 .031" 1 lb. Spool
• Long Conical Tip, 1/64"
• Long Screwdriver Tip, 1/32"
• ET SERIES CONICAL TIP


CUSTOMER REVIEWS:

Customer Rating:
Summary: Without equal
Comment: The Weller WES51 is without a doubt the absolute best soldering iron that a working man can justify spending the money on. It's the ONLY heavy duty iron you'll ever find that allows exact temp settings for under a hundred bucks. It allows you to set the temp only a few degrees above the melting point of the solder, greatly enhancing the quality of your work. And it's a heavy duty unit, so unlike the cheap lightweight ripoffs. The rugged and user friendly design reminds me of something made in the 1950s or 1960s. Well done, Weller!
Customer Rating:
Summary: Weller WES51 Solder Iron Station
Comment: This is a top quality soldering iron for all experience levels. The purchase process from ordering to delivery was very easy and smooth.
Customer Rating:
Summary: Great analog soldering iron.
Comment: A few years back I bought a digital soldering station from Rat Shack. It said it had replacable tips. You can replace them with as many tips as you want so long as you replace it with the only tip that fits that soldering iron which is huge. So I was working on a little tedious project and decided it was time to buy a new soldering iron that actually had a large selection of tips. After much deliberation I bought this one.

The soldering wand is very ergonomic, light and easy to use. It has a soft narrow grip and a short tip making it easy to control when you are in tight spaces. It heats up in under a minute. The dial goes in 10 degree increments from 350 to 850 degrees Fahrenheit. The unit is very well built and has a sturdy stand with a funnel on the end to help guide the tip in so you aren't banging it against the coil when putting it in the stand.

All in all I think it is a great soldering iron. I don't know what the reviewer who gave it one star was talking about because this one definitely doesn't have an LCD. Perhaps they actually have the WESD51. As far as the lateral pressure goes, I can't think of any soldering project that requires pressure. It's about heat transfer not about forcing the object off the board.
Customer Rating:
Summary: Great Soldering Station
Comment: I have owned Weller products since the 60's w/am old handheld I purchased at Lafayette Electronics in Baton Rouge, LA. This is an upgrade from the orange station Weller makes, I got at Sears, that eventually died. This particular station really does a quick job of heating and the variable switch make it easy to change when different levels of heat are required. I am really pleased with it. My only complaint is that the cord on the wand could be about a foot longer, but that's OK. I just move it closer to my work.
Customer Rating:
Summary: Good soldering station
Comment: I bought this for home and hobby use. It meets those needs nicely. I bought several extra tips and some solder removal wicks as well. This is a big improvement over my older pencil solder guns, which had poor temperature control. The vendor (HMC Electronics) has a good web site for ordering and shipped on time.

---
