Safety Speed Cut C4 Vertical Panel Saw

Today's tips: "Best is reviewing several wood working tools first, prior to purchasing ..."

---

NOTE: All online transactions are processed at Amazon.com's secure server,
using the latest technology on internet's secure transactions.

Publisher: Safety Speed Cut

Brand: Safety Speed Cut
Our Price:
(prices subject to change)
Availability: Usually ships in 3 to 5 days

Average Customer Ratings:

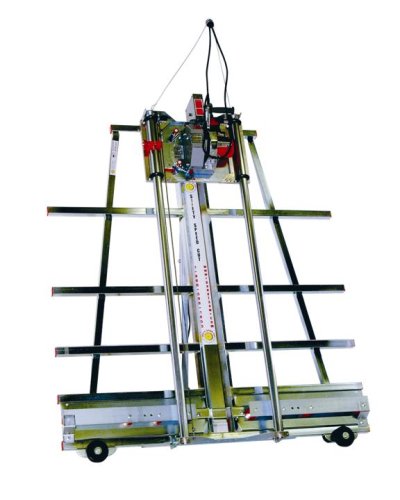

The C4 panel saw packs all of the features of full-size panel saws into a portable 5ft. frame. This panel saw can travel to work sites and fit into shops with limited floor space. The C4 is ideal for cutting 4ft. x 8ft. sheets of material. The C4 comes standard with a 3 1/4 Hp, 15 amp industrial duty saw motor, adjustable vertical and horizontal rulers, spring loaded counter balance system, quick change from vertical to horizontal cutting, 1 year parts warranty, and a lifetime frame warranty.


DESCRIPTION:

Binding: Tools & Hardware
Brand: Safety Speed Cut
EAN: 0859901001018
Feature: Max. Crosscut - 50"/1270mm
Label: Safety Speed Cut
Manufacturer: Safety Speed Cut
Model: C4
Publisher: Safety Speed Cut
Studio: Safety Speed Cut


FEATURES:

• Max. Crosscut - 50"/1270mm
• Max. Rip Cut - 96"/2450mm
• Max. Cut Thickness - 1 3"/4/45mm
• Cut Accuracy - 1/32"/0,8mm
• Saw Blade Diameter - 8"/200mm



ACCESSORIES:

• Safety Speed Cut H-30 Extensions (For Model C-4)
• Safety Speed Cut H-10 Set of Wheels (For Model C-4)
• Safety Speed Cut H-20 Stand (for Model C-4)


SIMILAR ITEMS:

• Safety Speed Cut H-10 Set of Wheels (For Model C-4)
• Freud LU98R008 Superior 8-Inch 64 Tooth TCG Laminate and Wood Cutting Saw Blade with 5/8-Inch Arbor and PermaShield Coating


CUSTOMER REVIEWS:

Customer Rating:
Summary: Panel work made easy...
Comment: I give this saw five stars now considering all factors and leaving some emotion out. I bought the saw because of space constraints in my shop trying to handle and cut large panels on my table saw without any help. That, and at the time I was getting ready to start on my kitchen cabinets.

I set the saw up and added my additional options of wheels, stand, extensions and Quick-stop guage. Probably due to something during shipping, my saw would not cut a straight line. It was off by nearly 3/32" over a 48" cut (I cannot believe Safety Speed Cut would crate it up and ship it when it was off by that much). After making the first few test cuts, I thought I was going to have to cut pieces oversized and then trim to square on the table saw, but after reading the manual and making some adjustments this was not the case.

So here is why I still gave it five stars.

The instruction manual was very thorough and clearly explained how to check for square if your cuts were off. They walk you through every possible option and even explain how to make up a large tri-square to dial the saw back into square. After making up the large tri-square (at some additional expense) the saw was very easy to adjust and before long I had the saw cutting square straight pieces for my cabinets.

This saw makes handling large plywood sheets easy, and with less effort and fatigue compared with a table saw, you can have 10 sheets cut down to size in no time at all. The optional Quick-stop guage makes repetitive cuts quick and accurate - great for cabinet sides, backs etc.

So, other than a slight initial alignment problem, the saw has been one of the best additions to my shop. I am considering adding the dust collection option in the future and my only observation there is that it is a fairly high dollar option ($347) for something so necessary. In my opinion, this should be standard on all of the saws instead of an accessory.

Another plus in choosing this saw over a 3HP cabinet saw is that you can use standard 110V power versus adding a 220V circuit for your cabinet saw.

If you work with large sheets often, I highly recommend this saw especially if you have a smaller shop. If you have room to spare, you might consider the H-4 saw which is what I originally wanted but could not get into my shop.
Customer Rating:
Summary: panel saw
Comment: I have found this saw to be very accurate, and easy to use. I have owned it for about a year, and use it far more than I though I would. It makes it very easy to cut a 4 x 8 sheet of plywood. It is however not very portable. I ussually measure up what I need to cut at the job site, and take the work to my shop.
Customer Rating:
Summary: Great saw... No regrets!
Comment: This is a scaled down version of the panel saws used at most lumberyards and home centers. I have had mime for about a year and really depend on it now. Before, I had to struggle with large sheets on the table saw, which usually required the help of a second person. Now, I can manage these easily by myself. The saw was delivered factory adjusted for precision cuts. I highly recommend purchasing the optional wheels, extensions and stand unless you plan on mounting it in a permanent location. I use mine in the garage and wheel it out when weather permits. On the downside, the material rollers are made of plastic and could presumably break if a heavy sheet such as melamine was to drop on them. Also, it is sometimes difficult to switch the saw from crosscut to rip mode as sawdust particles build up between the rotating plates causing them to bind. I have tried silicone spray in this area but it doesn't seem to last. Overall however, I feel this was an excellent investment.
Customer Rating:
Summary: Small cellar workshop
Comment: I bought a c4 2 years ago.It was the best investment I have ever made.I need too cut plywood which I do and make alot of cabinets.I no longer have too take it outside on saw horses.I slide my plywood in and it cuts so square I do not have too square it on my table saw.I can cut a full set of kitchen cabinet bases in about a half hour.If your thinking about one go for it! Sincerly John Landers Amesbury Mass. usa

---
